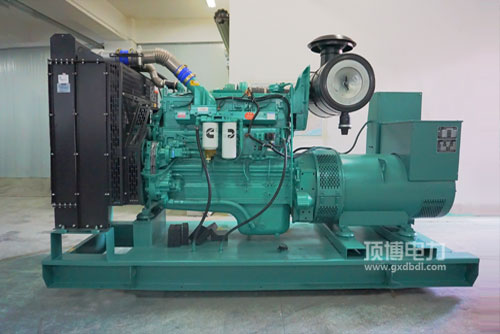

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯风能发电用打火机气油社会费用效益好: 先进性的气油操控系统化性，独到的STC、ESTC 分级管理操控系统化性，特别装修设计的柱塞上端点燃室，高压力引射气油，充足吸雾，点燃充足。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电量用发起机瞬态特性优质: 更好的发起机总体定制，协调一致康明斯与众不同的EFC系统软件，把控好精确高，死机周期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯来发电用起思想升功效高: 整体的构思紧身.外观设计摆置适当，进行平缓。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷网络制式 QSNT. QSK19. QSK38. QSK50提供中国国家非市政道路然后步骤及美洲Tier2. Tier 3排放物标准想要。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零配件可获性好， 发起机正常运作及维护皮肤保养方便快捷，价格低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

输出功率空间 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观简约时尚长宽比 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质理 Dry Weight   940kg

224-310KW康明斯风能发电用启行为的作用：质量小， 压缩成变高， 喷淋喷嘴热空气微波加热，更能发动，移动式车载一体机电压的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机技术参数	通用额定功率(kW)Prime Power	紧急公率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
